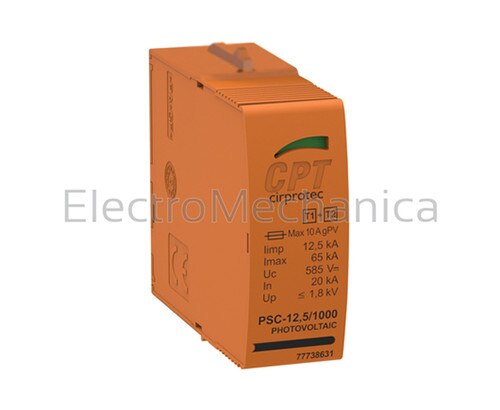

PSC 12.5/1000 PV
12.5kA 65kA 585V PHOTOVOLTAIC
R884.31
Supplier: Cirprotec
Pack Size: 1
Spare replacement plug-in cartridges for surge arrestors
- For PV surge arrestors 1000 VDC
- Class 1+2
| DESCRIPTION | Photovoltaic surge protection device |
| TYPE | Class 1 + 2 |
| (10/350 μs) L-N (LIMP) | (10/350 μs) L-N (LIMP) |
| (8/20 μs) L-L (IMAX) | 65kA |
| MAXIMUM PV VOLTAGE (UCPV) | 1170 V |
| VOLTAGE PROTECTION (Up) | < 1.8kV |
| FOR SURGE PROTECTOR | PSC3-12.5 PV |
