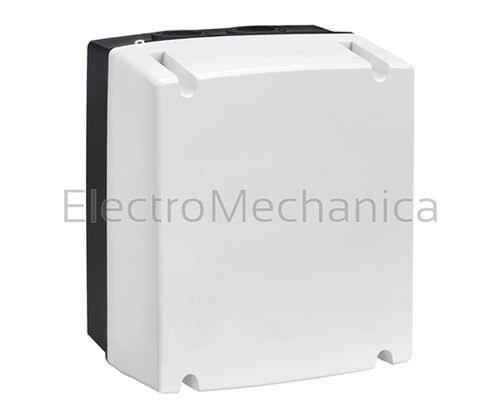

M25N
EMPTY POLY HOUSING 210x175x165mm
R831.65
Supplier: Lovato Electric
Pack Size: 1
Insulated enclosures (plastic enclosures)
M24 and M25 series housings
Robust, heavy duty enclosures for housing a variety of components. Lovato enclosures are high quality housings ideally suited to indoor or outdoor installations, offering IP65 degree of protection to internally mounted components.
Features:
- Incorporated earth terminal
- Two M25/M32 knock-outs on top and bottom of enclosure
- Mounting holes within the enclosure but outside the sealing gasket
- Supplied complete with internal metal mounting plate (156 x 148 mm)
- Engraved internal grid (alpha and numeric) for ease of mounting control devices
SERIES | M25 series |
INDEX PROTECTION IP | IP65 |
OPERATING TEMPERATURE | -25 - +60°C |
DESCRIPTION | Deep empty plastic housing |
DIMENSIONS (MM) | (H) 210 x (W) 175 x (D) 149 |
