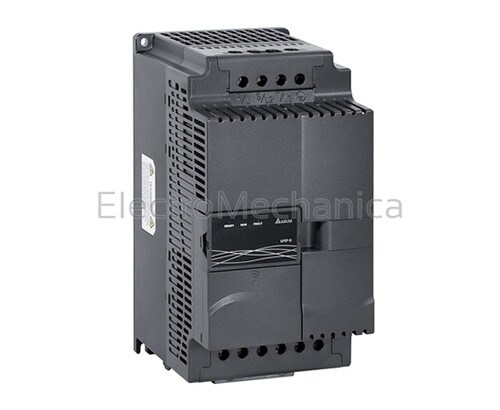

VFD055E43A
5.5KW 3PH "E" AC MOTOR DRIVE
R7,884.10
Supplier: Delta
Supplier Code: VFD055E43A
Pack Size: 1
E series drives
- Standard MODBUS protocol via RS-485
- Expandable with optional plug-in cards
- DIN rail mountable (with optional accessory)
- Extension facilities via plug-in extension cards
- Built-in PLC function (easy to write PLC function)
- Side-by-side installation (40°C) high-efficiency cooling and flexible space
- Built-in braking chop and EMI filter (to reduce electromagnetic interference efficiently)
- Optional Fieldbus modules for a variety of networks Profibus, DeviceNet, Lonworks, CANopen
- Fascia can be replaced with optional keypad KPE-LE02 (speed change and status indication)
| SERIES | E |
| MOTOR RATING | 5.5kW |
| VOLTAGE | 384 - 480 VAC |
| PHASE | Three phase |
| DESCRIPTION | Three-phase AC motor drive |
| FRAME SIZE | C1 |
| DIMENSIONS (MM) | (H)260 x (W)130 x (D)169 |
