UQ1D/G6-0E

ULTRASONIC PNP/NO/NC/4-20mA 1.2M

R4,427.04
Supplier: MD Microdetectors
Stock Availability: Login to check stock

(*) Minimum Quantity: 1

Ultrasonic sensors (IP67)

Ultrasonic transducer emits an ultrasonic signal which is reflected back by the target towards the sensor. The trigger circuit measures the time between the emission and the detection of the signal. Since the speed of the ultrasonic beam in air is known, it is easy to have an indication of the presence of the target, as well as a measure of the distance between sensor and target.

A Teach-in button is used to set working distance, output status (NO/NC) and slope of analog output and to change the function. All models are temperature compensated to ensure reliability throughout the entire detection range and are totally resin filled for applications subject to vibration offering an IP67 protection degree.

Key features:

  • Sensitivity: Adjustable (via external Teach-in)
  • Ambient limits: -20 ... +70°C
  • Supply protection: Polarity reversal, transient, short circuit
  • LED indication: Orange (output/regulation), green (echo reception)
  • Housing material: PBT plastic (AISI 316L stainless steel available on request only)

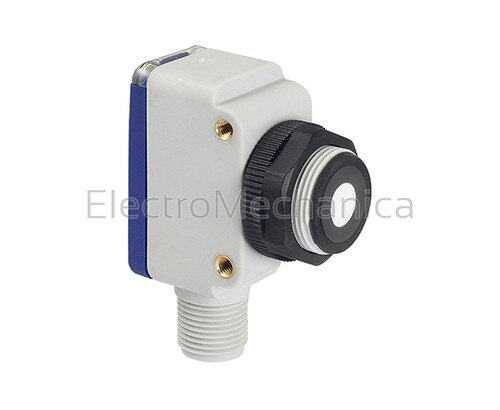

M18 UQ1 series - Cubic ultrasonic sensor with head

Analog + Digital NO/NC output

SERIESUQ1 series
DESCRIPTIONM18 ultrasonic sensor
SUPPLY PROTECTIONPolarity reversal, transient
INDEX PROTECTION IPIP67
LED INDICATIONOrange (output/regulation), green (echo reception)
HOUSING MATERIALPBT plastic (AISI 316L stainless steel available on request)
SENSITIVITYAdjustable (via external teach-in)
OUTPUTAnalog and Digital NO/NC output
SUPPLY VOLTAGE10 - 30 VDC
SENSING DISTANCE (MM)80...1200
PNPYes
NPNNo
DIMENSIONS (MM)(H) 53 x (W) 20 x (D) 38 mm
