UC205

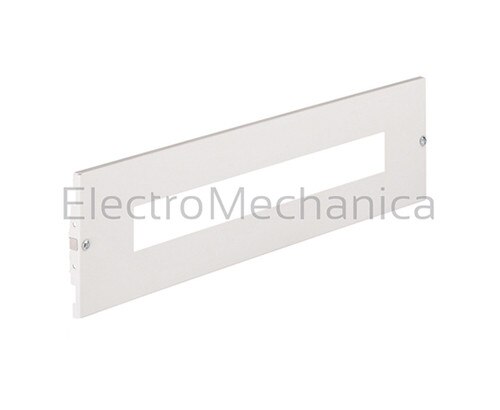

MOUNT KIT MCB 24MOD 200x600W
R1,044.07
Supplier: Hager
Pack Size: 1
Quadro 5 floor standing distribution board system
The Quadro5 system offers a sophisticated, aestheticallypleasing, protected (IP55 with door) enclosure which can be attached sidebyside to one another horizontally to satisfy most distribution board requirements. Quadro 5 accepts equipment kits for the assembly of devices and power distribution up to 630A.
A complete floor-standing distribution board system is made up of the following:
- 1) Main structure with back plate (height) 1260 or 2010 mm / (width) 450 or 700 mm / (depth) 260 mm
- 2) Pair of side plates (left and right)
- 3) Door (plain or transparent)
- 4) Required equipment mounting kits (front covers and assembly rails)
- for MCBs (miniature circuit breakers) and modular devices
- for MCCBs (moulded case circuit breakers)
Component:
- Equipment mounting kits (for Quadro 5 system)
- Comprises: mounting accessories and front covers for MCBs and MCCBs
- For 700 mm wide (standard) panels
| SERIES | Quadro 5 series |
| INDEX PROTECTION IP | IP55, IK10 (with door) to EN 60530 |
| COLOUR | RAL9010, (plinth RAL7042) |
| TYPE TESTED NOMINAL CURRENT | 630A, 35 kA |
| NOMINAL INSULATION VOLTAGE | Ui = 690 V |
| DESCRIPTION | Kit for mounting MCB's |
| NUMBER OF MODULES | 24 modules |
| FOR ENCLOSURE | FM205/9 |
| DIMENSIONS (MM) | (H) 200 x (W) 600 |
