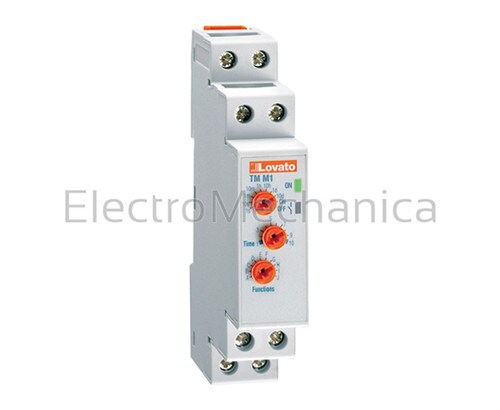

TMM1

TM series modular timing devices

Multi-function / multi-voltage / multi-range timer

General features:

• Changeover relay 8A - 250 VAC
• Excellent time accuracy and stability

Functions:

• A - On-delay (delay-on make relay switches after preset time)
• B - Interval (relay switches for preset time on energising)
• C - Equal repeat (start with OFF time)
• D - Equal repeat (start with ON time)
• E - Relay energises ON closing external contact. timing begins on opening
• F - Pulse controlled interval (timing begins on closing of external contact)
• G - Pulse controlled interval (timing begins on opening of external contact)
• H - Delay on closing of external contact as well as opening of contact
• I - Step relay (relay changes state on each closure of external contact)
• J - Pulse generator unequal repeat OFF time adjustable on time fixed 0.5sec
