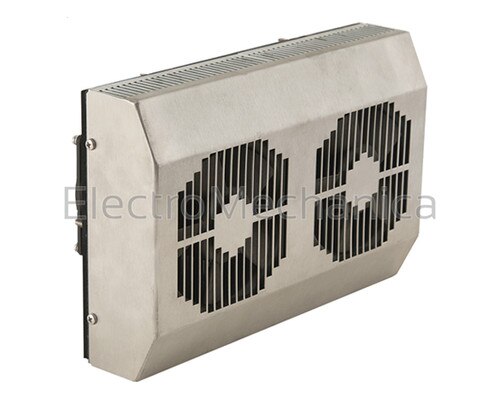

TG 3200-24V

200W THERMO ELECTRIC UNIT 24VDC

R34,105.79
Supplier: Seifert
Stock Availability: Login to check stock

TG series thermoelectric cooling units(heat pumps)

Thermoelectric cooling units an effective solution for the conditioning of enclosures or electronic components. Electric energy transferred heat without the use of hazardous gases or liquids. The core of the system are thermoelectric modules (Peltier modules) permitting heat absorption from one side (cold side) and heat expulsion to the ambient from the other side.

Features:

  • Eco-friendly
  • Easy installation
  • Maintenance free
  • Operation in any orientation
  • For cooling enclosures or electronic components
Series TG series
VOLTAGE (V)24 VDC
COOLING POWER200W
RATED CURRENT9.0A
INDEX PROTECTION IPIP55
CUTOUT (MM)370 x 155
DIMENSIONS (MM)(H) 400 x (W) 180 x (D) 171

Product Data Sheet

ViewDownload

Instruction Manuals

ViewDownload

Certifications

ViewDownload

Cad Drawings

Request
