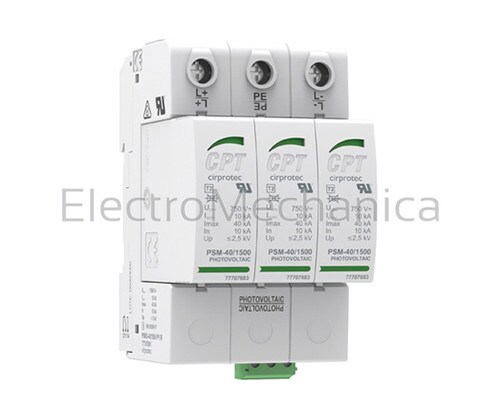

PSM3-40/1500 PV

TYPE 2 Imax 40kA 3P SPD PV 1500V

R3,285.55
Supplier:

Surge protection devices for photovoltaic (PV) installations

Due to their location solar panels and in many cases the inverters are connected to, are exposed to and particularly prone to direct or indirect lightning strikes. As PV systems are directly connected to the electrical networks of buildings, surge protection is essential. Suitable for protection where no external protection is installed. Protection should be installed on the DC as well AC side of an installation.

Features:

  • Type 2 / Class II PV surge protection device
  • Suitable for protection where no external protection is installed
  • Plug-in cartridges for quick and easy replacement of damaged ones
  • Meets all current international standards (IEC 61643 / IEC 62305, etc.)
  • High discharge capacity tested with an 8/20 μs waveform: 40kA per phase
  • Clear lifetime indication (on front face) and optional remote (IR) end of life signalling contact
DESCRIPTIONPhotovoltaic surge protection device
TYPEClass 2
(8/20 μs) L-L (IMAX)40kA
MAXIMUM PV VOLTAGE (UCPV)1500 V
VOLTAGE PROTECTION (Up)‰¤ 5.0kV
NUMBER OF POLES3
CONFIGURATIONL+/L-
WIDTH IN 18 (MM)3
