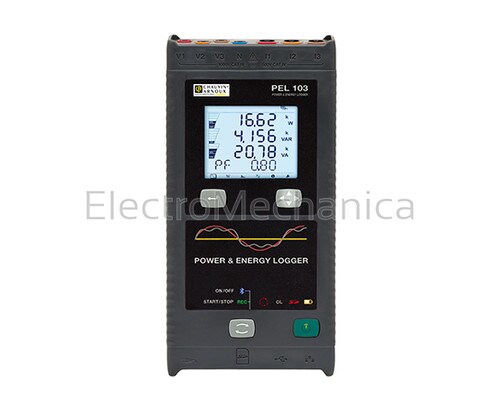

PEL103 / 102 series - Power & Energy Loggers (IP54 casing)

PEL100 series Power and Energy loggers provide a complete solution to measuring and identifying energy consumption in any industry, they can be used handsfree, remotely without interruption to the mains power. The logger tracks even the slightest consumption in an electrical network, providing all Power and Energy measurement recording on the internal 2GB SD card, while simultaneously permitting real-time monitoring on its backlit 4 line LCD display. Recordings are time/date stamped for ease of comparing measured gains achieved before and after installation modification. Easily transfer recorded data to a PC via the free PEL data transfer software and SD card with USB adaptor (included).

Key features

  • RMS frequency, voltage and current measurements
  • Voltage measurement ranges 10 to 1000V AC/DC +/- 0.2 % + 0.5 V
  • Current measurement ranges 5 mA to 10 kA AC / 50 mA to 1,4 kA DC ±0.5 %
  • VA, W and var power values
  • Power Factor (PF), cos Ïߙ, tan Ïߙ and crest factor
  • Total Harmonic Distortion (THD) for currents and voltages
  • DC, 50 Hz, 60 Hz and 400 Hz measurements
  • Phase rotation indication and MIN/MAX indication of all parameters
  • VAh, Wh (source, load) and varh (4 quadrant) energy values, total energy
  • Harmonics: up to the 50th order for currents and voltages (an essential feature to help identify problems)
  • Designed to fit inside most electrical cabinets thanks to its magnetic base or hook for easy mounting.

Network types include: Three phase (with or without neutral), split phase, single phase

Automatic recognition: Of the type of sensor connected

Communication / Data transfer: USB, Ethernet and Bluetooth / PEL transfer PC software (included)

Records: Measurements and calculation results on SD card (included)

Acquisition rate: 128s/period

Complete kit consists of:

  • 1 x PEL103 Power and Energy Logger:
  • 3 x MA193 (200 mm) flexible current clamps:
  • 4 x Measurement leads and crocodile clips:
  • 1 x Set of coloured rings and Inserts:
  • 1 x 2GB SD card (internal):
MODELPEL103 series
DESCRIPTIONPortable power and energy logger/analyser
DIMENSIONS(H) 256 x (W) 125 x (D) 37
