LVM40A240

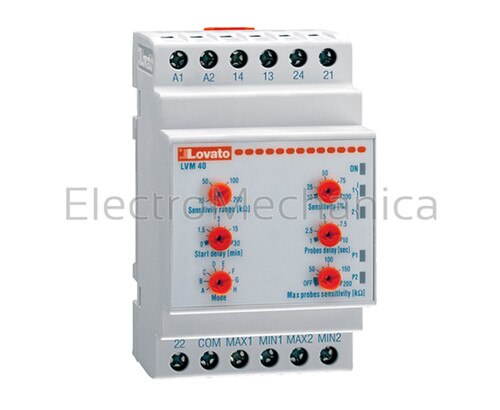

LIQUID LEVEL CONTROL RELAY-5PROBE

R2,355.74
Supplier: Lovato Electric
Stock Availability: Login to check stock

(*) Minimum Quantity: 1

LVM series level controls relays

LVM40 five detecting probes (Min1, Max1, Min2, Max2 and Com)

Adjustments:

  • Sensitivity 2.5 - 200Ω (seperate adjustment for Max for foam detection)
  • Probe signal delay 1-10s - pump start delay 0 - 30min

Selectable:

  • Standard emptying and alarms (or) standard filling and alarms
  • Emptying with priority start-up change control
  • Filling with priority start-up change control
  • Well draining and tank filling and alarms

General features:

  • Level monitoring for electrically conductive liquids
  • Modular DIN rail mounting (aligns with standard MCB's)
  • Double insulation between supply, electrodes and output relay
SERIES LVM
DESCRIPTION5 probe liquid level control relay
ADJUSTABLE SENSITIVITY2.5 - 200Ω
SUPPLY VOLTAGE220 - 240 VAC
MODULE WIDTH (MM)54 (aligns with standard MCB's)
