LVFSN1B15

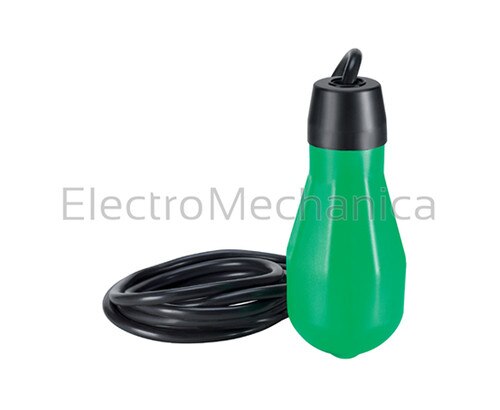

DIRTY WATER FLOAT SWITCH 15M

R3,635.00
Supplier: Lovato Electric
Stock Availability: Login to check stock

(*) Minimum Quantity: 1

LVFS series - Float switches For Grey water

General features:

  • Level control usually performed using two float switches, one for MIN. and another for MAX. levels
  • • Cable H07 RN-F3X1 (Neoprene)

Dirty water applications - for civil and industrial control of levels for sewage or waste water from industry. Float switch made of "one-piece" blow moulded polypropylene casing with fixed internal counter weight located in the cable exit area

SERIES LVFSN
DESCRIPTIONFloat switch (For sewage or waste water applications)
INDEX PROTECTION IPIP68
INSULATIONClass II
STANDARD OF COMFORMITYIEC/EN 60730-1/-2-15, TUV certification
ACTIVATION ANGLE-15° ... +15°
MODULE WIDTH15 meter

Product Data Sheet

ViewDownload

Instruction Manuals

Request

Certifications

ViewDownload

Cad Drawings

ViewDownload
