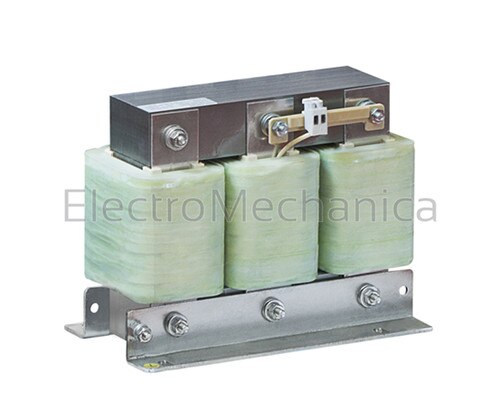

HFRA1207
12.5kVAr 7% 400V HARMONIC REACTOR
R5,250.00
Supplier: EM
Supplier Code: HFRA1207
Pack Size: 1
De-tuned anti-harmonic reactors 400V, 50 Hz
Detuned reactors protect capacitors against harmonics, avoiding parallel resonance and amplification of harmonics flowing in the network.
- Insulation: F class insulation, 155°C
- Reference standards: IEC/EN 60076-6, 61558-2-20
- Internal protection: Thermal cutout (125°C) incorporated (on centre phase)
- 7% - 189 Hz De-tuned reactors for networks with 5th and 7th Harmonics
| SERIES | HFRA series |
| KVAR AT 400V | 12.5 |
| KVAR AT 440V | 15 |
| DESCRIPTION | Anti-harmonic reactor |
| DETUNING DEGREE | 7%, 189 Hz |
| INSULATION | F class insulation, 155°C |
| INTERNAL THERMAL PROTECTION | Thermal cutout (125°C) incorporated (on centre phase) |
| STANDARDS | IEC/EN 60076-6, 61558-2-20 |
| DIMENSIONS (MM) | (H) 215 x (W) 210 x (D) 120 |
