275.186-516600
30kVAR 440V 3PH CAPACITOR
R3,229.38
Supplier: Electronicon
Supplier Code: 275.186-516600/221402
Pack Size: 1

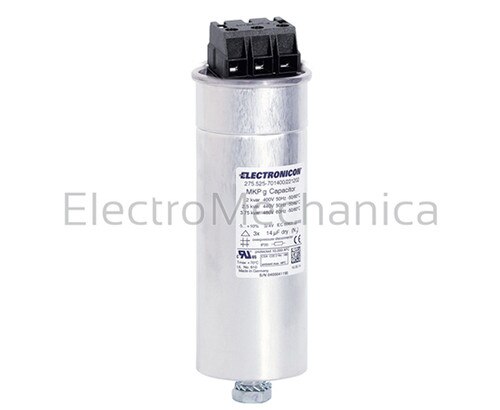

Three-phase cylindrical capacitors
400...480V three phase industrial capacitors
For severe operating conditions or substantial voltage fluctuations.
Features:
- Max. inrush current: 300 x IN
- M12 base mounted fixing stud
- Dielectric losses: <0.2 W/kvar
- Mounting position: Any position
- Capacitance tolerance: -5 +10%
- Max. permissible current: 1.5 2 IN
- Protection: Overpressure disconnection facility
- Impregnant (filling) Inert insulation gas (N2) (completely harmless to the environment)
| RATED VOLTAGE | 400...480V, 50 Hz |
| KVAR AT 400V | 25 |
| KVAR AT 440V | 30 |
| KVAR AT 480V | 36 |
| CN UF 3 x | 166 |
| DUTY | Continuous (life expectancy > 150000 h) |
| DESCRIPTION | 3 phase capacitor |
| DISCHARGE RESISTORS | Supplied with discharge resistors |
| TEMPERATURE CATEGORY | 60 -40°C +60°C (Max: 24 hr average 50°C annual ave 40°C) |
| DIMENSIONS (MM) (H) | 230 |
| DIMENSIONS (MM) (Ø) | 116 |
| STANDARD | IEC/EN 60831, VDE 0560-46/47, CSA C22.2 190-M1985, UL 810, GOST 1282-88 |
