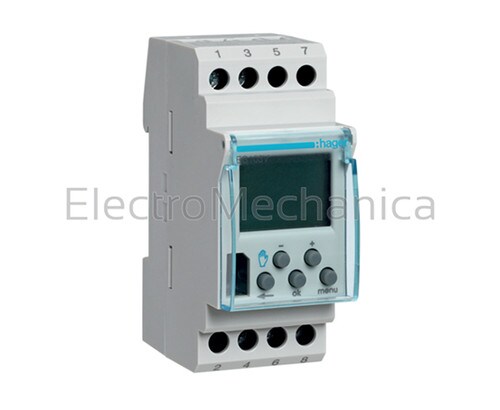

EG103V

7D 1CH IMPULSE TIME SWTH 12/24VDC

R1,750.90
Supplier: Hager
Supplier Code: EG103V
Pack Size: 1
Stock Availability: Login to check stock
​

(*) Minimum Quantity: 1

Back

Digital time switches exclusive (version)

Features:

  • Programmable pulses of 1 second - 30 minute duration
  • Holiday mode programmable (between two dates)
  • Programmable via buttons or via PC programmable key
  • Backlit display (for indication in badly illuminated locations)
  • Visualisation of daily profile via incorporated bar-graph display
  • Programmable via front keypad (even without supply) or program key EG005/EG007
TIME RANGE7 day
MINUTE SETTING1 second
DESCRIPTION Digital time switch
SUPPLY FAILURE RESERVE5 years
CONTACT CONFIGURATION1 changeover
WIDTH IN 17.5MM2
SUPPLY VOLTAGE230 VAC
CONNECTION CROSS-SECTION RIGID CABLE1.5 / 10mm²
CONNECTION CROSS-SECTION FLEXIBLE CABLE1 / 16mm²
BREAKING CAPACITY 16A 250V AC1
OPERATING TEMPERATURE-5 to 45 °C
FREQUENCY50 Hz
PROTECTION INDEX IPIP20
TYPE OF PROGRAMMINGDigital
PROGRAMMING KEYYes ( supplied with key)
