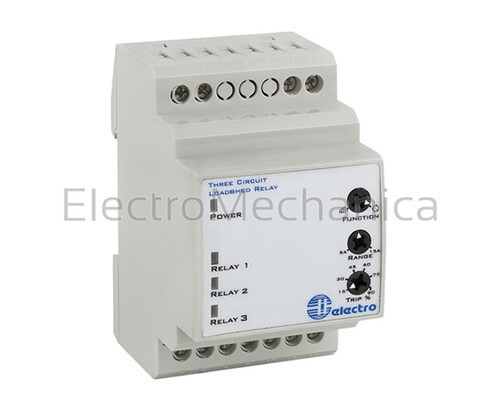

DLS230A

Load Shed Relay

The Electro D range of control and timing devices are compact modular units for easy introduction into standard panels and/or distribution boards. They mount directly onto DIN rail and align with standard miniature circuit breakers (MCB's).

Load shed relay designed with the latest microcontroller featuring high resolution analogue converter to produce precise switching levels. The unit is designed to monitor current consumption and disconnect non-critical loads from the system.

Features:

• 15 minute response delay
• Modular 35.5mm DIN rail mountable
• High Current 16A SPST output relay
• Front face selectable trip level 5 / 10A
• High resolution analogue microprocessor
• LED indication for relay and power supply ON
