JDDBT020-W
20mm HEAT SHRNK TUBE WHT (100M)
R3,080.00
Supplier: EM
Supplier Code: CYGBT020-W
Pack Size: 100

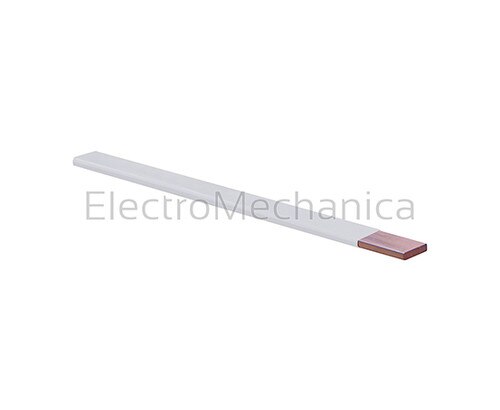

CYG-BT-1KV heat-shrinkable busbar insulation protection (medium wall)
Track resistant polyolefin heat-shrinkable bus bar tubing used to protect and insulate rectangular, square or round bus bars â- halogen free, low smoke.
Busbar tubing calculation: add four sides and divide by 3.4+10%
General features:
- Shrink ratio: 2.5:1
- Material: Polyolefin
- Shrink temperature: 110°C
- Tensile strength: â‰Â¥ 10.4MPa
- Elongation at break: â‰Â¥ 500%
- Dielectric strength: â‰Â¥ 25kV/mm
- Operating temperature: -55°C - 125°C
| DESCRIPTION | Heat shrink tubing |
| COLOUR | White |
| INSIDE DIAMETER Ø | 20 |
| SHRINK RATIO | 2.5:1 |
| AFTER RECOVERY - DIAMETER Ø | 8 |
| AFTER RECOVERY - WALL THICKNESS | 1.10 mm |
| ROLL LENGTH (METERS) | 50 m |
