CSV230K6-00
6 FAN TRAY MODULE
R3,453.91
Supplier: Fandis
Pack Size: 1

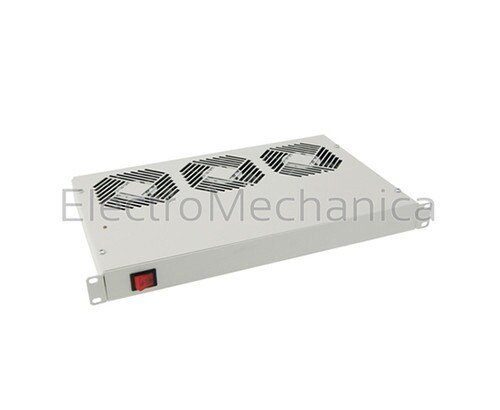

CVS series 19 fan trays
The CVS fan tray, fixed within the enclosure or 19 rack, guarantees the correct cooling with continuous air circulation preventing the formation of hot spots. Equipped with three or six 120 x 38 mm ball bearing, quiet, high reliability fans already wired and ready for integration into enclosures or 19 racks with minimal assembly effort to be positioned at any height.
Features:
- Standard U1 height
- Lifetime L 10: 40.000 hours at 40°C
- Epoxy painted steel casing - colour RAL 7035
| SERIES | CSV series |
| VOLTAGE (V) | 230 VAC |
| POWER (W) | 106 |
| AIR FLOW (M³/H) | 750 |
| NOISE (dB/A) | 52 |
| DESCRIPTION | 6 fan tray module |
| INDEX PROTECTION IP | IP20 protection degree according to EN 60529 |
| DIMENSIONS (MM) | (H) 45 x (W) 482 x (D) 324 |
