BCG1212

12A 12V MODULAR BATTERY CHARGER

R7,430.00
Supplier:
Pack Size: 1

(*) Minimum Quantity: 1

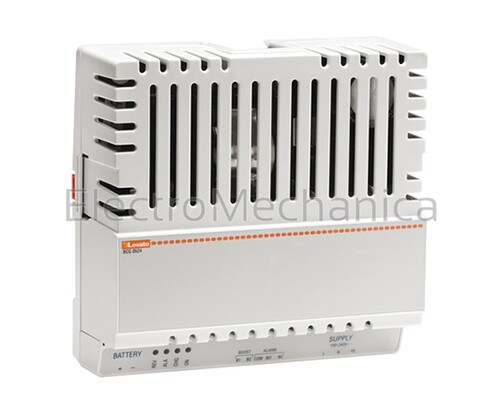

BCG series rail mount switching battery chargers

Features:

  • High efficiency
  • Boost signal controlled by external contact
  • Wide auxiliary supply range 110 240 VAC (±10%) 50/60Hz
  • Maximum charging current limiting trimmer 20 100% (adjustable from front)
  • Hiccup function for battery recharging when its voltage is lower than 50% rated value

Protection:

  • Mains input fuse
  • Electronic lock in case of short circuit on battery terminals, reverse
  • Battery polarity and battery overload

LED indication of:

  • Power ON
  • Reverse battery polarity
  • Charging operation I>30% Ic
  • Overload or short circuit condition
SERIES BCG
OUTPUT VOLTAGE12V
OUTPUT CURRENT12A
MAX POWER CONSUMPTION (VA)384
MAX POWER CONSUMPTION (W)190
DESCRIPTIONAuto battery charger
ALARM OUTPUT RELAY(5A 30 VDC)AC1 duty
MOUNTING DIN rail or chassis mounting (can be mounted vertically with adaptor)
DIMENSIONS(H) 150 x (W) 162 x (D) 63
