900070

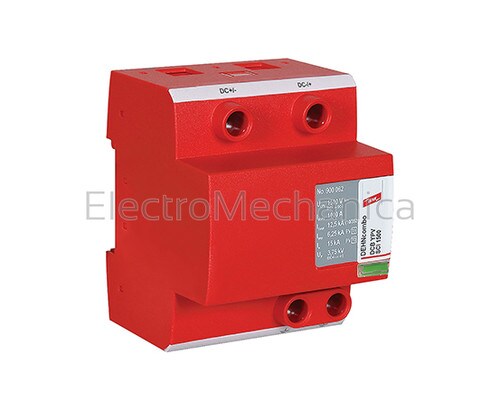

TYPE 1+2 20kA 1200VDC PV SPD

R2,109.72
Supplier:
Pack Size: 1

(*) Minimum Quantity: 1

Back

Photovoltaic (PV) surge protection devices

Due to their location solar panels and in many cases the inverters are connected to are exposed to and particularly prone to direct or indirect lightning strikes. As PV systems are directly connected to the electrical networks of buildings surge protection is essential.

Features:

  • Type 1+2 PV surge protection devices
  • Combined lightning current and surge arrestor for use in photovoltaic systems
SERIESDEHNcombo
DESCRIPTIONPhotovoltaic surge protection device
TYPEClass 1 + 2
MAXIMUM PV VOLTAGE (UCPV)≤ 1200V
(8/20 ¼) DC+/DC- (IMAX)20 kA
(10/350 ¼) DC+/DC- (LIMP)6.5 kA
VOLTAGE PROTECTION (Up)< 3.8 kV
NUMBER OF POLES2
CONFIGURATIONDC+/DC-
WIDTH IN 18 (MM)4
