485301

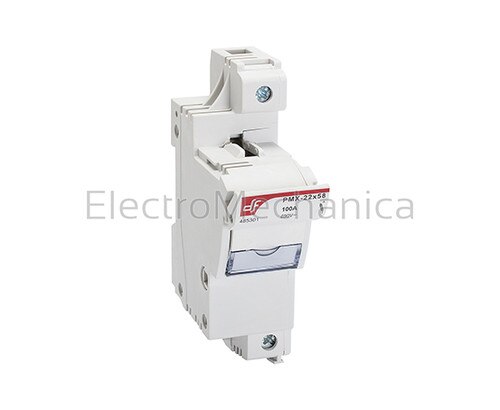

1P 125A 22x58 FUSE HOLDER

R280.82
Supplier: DF Electric
Stock Availability: Login to check stock

(*) Minimum Quantity: 1

PMX series modular fuse holders

Features:

  • Optimized ventilation zones for improved heat dissipation
  • Modular, compact fuse holder DIN rail mountable for cylindrical fuses
  • Incorporated hinged transparent label holder for positive circuit identification
  • High temperature resistance, self-extinguishing-halogen free body / silver plated copper contacts
SERIES PMX series
RATED CURRENT 125A
RATED VOLTAGE 690 VAC
NUMBER OF POLES1
DESCRIPTIONPMX industrial cylindrical fuse holder
DIMENSIONS (MM)(H) 126.5 x (D) 76.5
WIDTH IN 17.5MM2
FOR FUSE (MM)22 x 58
MOUNTINGDIN rail
CONFORMITY TO STANDARDSIEC/EN 60269-1, IEC/EN 60269-2, IEC/EN 60947-3, CSA C22.2 4248-1, UL4248-7
