485105

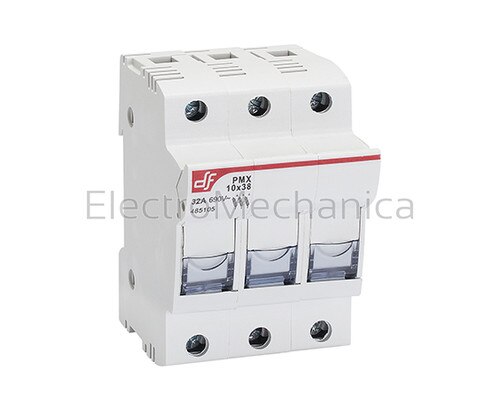

3P 32A 10x38 FUSE HOLDER
R228.00
Supplier:
Pack Size: 1
PMX series modular fuse holders
Features:
- Optimized ventilation zones for improved heat dissipation
- Modular, compact fuse holder DIN rail mountable for cylindrical fuses
- Incorporated hinged transparent label holder for positive circuit identification
- High temperature resistance, self-extinguishing-halogen free body / silver plated copper contacts
SERIES | PMX series |
RATED CURRENT | 32A |
RATED VOLTAGE | 690 VAC/750 VDC |
NUMBER OF POLES | 3 |
DESCRIPTION | PMX industrial cylindrical fuse holder |
DIMENSIONS (MM) | (H) 88.8 x (D) 58 |
WIDTH IN 17.5MM | 3 |
FOR FUSE (MM) | 10 x 38 |
MOUNTING | DIN rail |
CONFORMITY TO STANDARDS | IEC/EN 60269-1, IEC/EN 60269-2, IEC/EN 60947-3, CSA C22.2 4248-1, UL4248-5 |
