3831 3006

63A 3P FUSERBLOC NH000 FUSE SWTH

R2,830.96
Supplier:
Pack Size: 1

(*) Minimum Quantity: 1

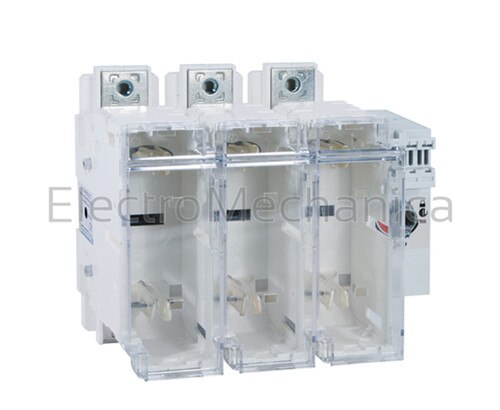

FUSERBLOC fuse combination switches

FUSERBLOC are manually operated fuse combination switches. They make and break on load and provide safety isolation and protection against overcurrent in any low voltage electrical circuit.

Features:

  • DIN pattern fuses
  • Test position for testing control circuits without power (up to 400A)
  • External front operating handle and shaft (to be ordered separately)
  • IEC/EN 60947-3, IEC/EN 60269-1, IEC/EN 60269-2, VDE 0636-1, VDE 0660-107
  • Complete isolation of fuses with double breaking per pole (top and bottom of fuse) with positive break indication
AC-22A 415V (A)63A
AC-23A 400V (kW)30kW
FUSE TYPE000
NUMBER OF POLES3
DESCRIPTIONDIN pattern fuse combination switch
CONFORMITY TO STANDARDSIEC/EN 60947-3, IEC/EN 60269-1, IEC/EN 60269-2, VDE 0636-1, VDE 0660-107
DIMENSIONS (MM)(H) 118 x (W) 136 x (D) 132
