3631 3003

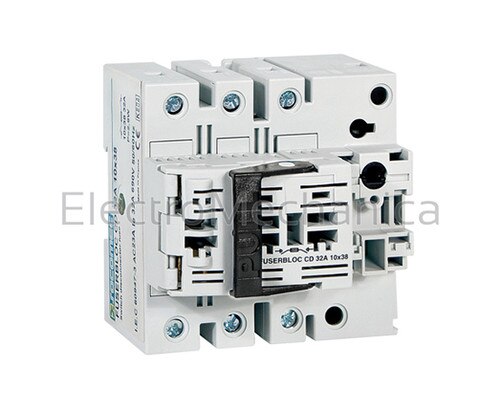

32A 3P FUSERBLOC 10x38 FUSE SWTH

R2,062.92
Supplier: Socomec
Stock Availability: Login to check stock

(*) Minimum Quantity: 1

FUSERBLOC fuse combination switches

FUSERBLOC are manually operated fuse combination switches. They make and break on load and provide safety isolation and protection against overcurrent in any low voltage electrical circuit.

Features:

  • NFC cylindrical fuses
  • Test position for testing control circuits without power (up to 400A)
  • External front operating handle and shaft (to be ordered separately)
  • IEC/EN 60947-3, IEC/EN 60269-1, IEC/EN 60269-2, VDE 0636-1, VDE 0660-107
  • Complete isolation of fuses with double breaking per pole (top and bottom of fuse) with positive break indication
AC-22A 415V (A)CD32A
AC-23A 400V (kW)15kW
FUSE TYPE10 x 38
NUMBER OF POLES3
DESCRIPTIONNFC cylindrical fuse combination switch
CONFORMITY TO STANDARDSIEC/EN 60947-3, IEC/EN 60269-1, IEC/EN 60269-2, VDE 0636-1, VDE 0660-107
DIMENSIONS (MM)(H) 98 x (W) 96 x (D) 65
