136.5121-302

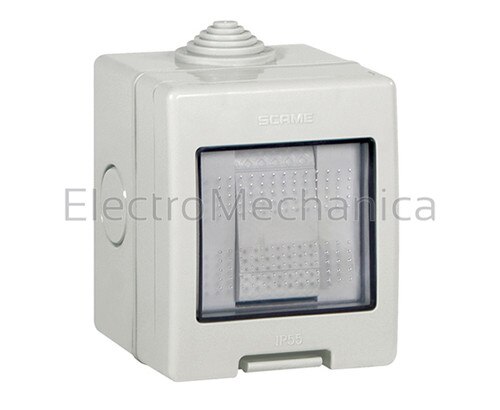

20A 1x2P IP55 SURFACE MNT SWITCH

R240.35
Supplier:

Unibox series surface mounting weatherproof switches and sockets

UNIBOX Series enclosures are designed to accomodate EVOLUTION Series accessories and, with specific bearing adaptors, the BASIC Series.

UNIBOX Series IP55 version could be used in gardens, outside commercial and residencial buildings and any area where protection against dust or rainwater is required.

  • Installation: surface or flush mounting.
  • Made in technopolymer, shockproof and self-extinguishing.
  • The switching operation can be undertaken through the transparent membrane.
  • Accepts EVOLUTION Series accessories and, with adaptors, the basic Series.
  • The UNIBOX cover clip offers easy access and ensures positive closure maintaining the IP55 rating.
  • The frame can be attached to the base before securing the fixing screws simplifying the installation process .
SERIES Unibox
AMPERAGE20A
NUMBER OF GANGS1
NUMBER OF POLES2P
DESCRIPTION1-way surface mount switch
INDEX PROTECTION IPIP55
HOUSINGEngineering plastic (halogen free) RAL 7035 (grey)
IMPACT RESISTANCE IK06 (500g with a striking energy of 1J)
MAXIMUM TEMPERATURE(+)60°C
GLOW WIRE TEST650°C
DIMENSIONS (MM)(H) 82 x (W) 68 x (D) 66
