10060400

HOUSING 85X85X51 IP66 GREY

R76.82
Supplier: Wiska
Pack Size: 1
Stock Availability: Login to check stock

(*) Minimum Quantity: 1

COMBI Junction boxes (IP66/67)

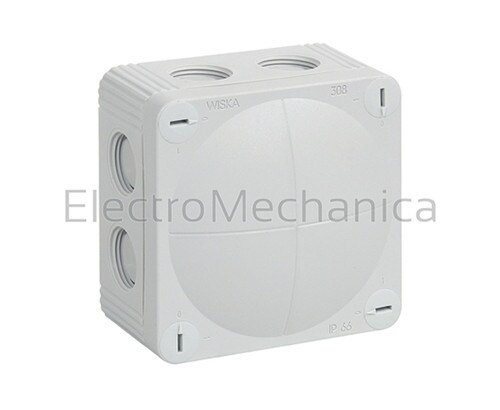

Wiska COMBI junction boxes provide ultimate protection from environmental conditions in a compact, very attractive format, suitable for extreme outdoor installations.

Features:

  • Integrated thread for cable gland entry without locknuts (308/407/607/1210)
  • Captive rust free quick release lid screws (1/4 turn) of plastic (308/407/607/1210)
  • Weather proof, ultraviolet resistant, shatterproof, impact resistant, flame retardant and halogen free,
  • Patented combination of thread and soft self-sealing membrane for faster cable entry (sides and rear)
  • Mounting holes located outside the sealing area within the lid. (ext. mounting clip provided for 308/407)
SERIES COMBI 308
CABLE ENTRY - SIDES8
THREAD M20
DESCRIPTIONWeatherproof junction box
COLOURGrey (RAL 7035)
INDEX PROTCTION IP IP66/67 (captive - quick release lid screws)
FLAME PROTECTION Glow wire test 750° according to EN60695-2-11
MATERIAL Polypropylene, reinforced glass fibre, sealing: thermoplastic elastomere
DIMENSIONS (MM)(H) 85 x (W) 85 x (D) 51
