WMS15004

Wall mount power factor systems (automatic) 400/440V

For applications with varying capacitor requirements. An automatic reactive controller monitors the network and only switches capacitor banks when required, avoiding potential over or under compensation in a network.

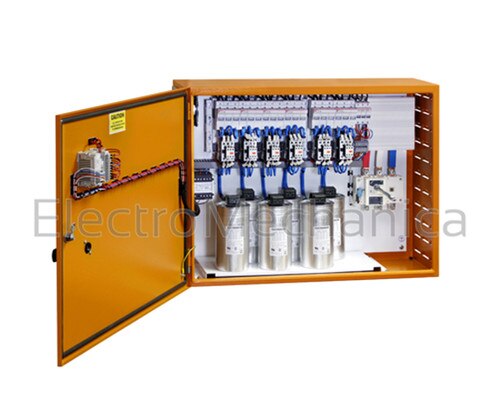

WMS series - Wall mount power factor systems

Features:

• HRC fuse protection (per capacitor bank)
• Complete ready-to-install system comprising following
• Heavy duty three phase capacitors (with internal discharge resistors)
• Special capacitor switching contactors incorporating limiting resistors
• Mains isolator, door interlocking (with early make / late break auxiliary)
• Reverse-flow fan ventilated wall mount enclosure, bottom cable entry (top entry on request)
• Reactive control relay DCRL 5 (digital display of all important electrical network parameters)
