UC050H
MOUNT KIT MCCB 1000A 600x600W
R707.60
Supplier: Hager
Supplier Code: UC050H
Pack Size: 1
Quadro+ floor standing distribution board system
Quadro + enclosure systems are supplied in a flat-pack format for ease of transportation and on-site assembly. Cabinets can be joined horizontally to form complete multi-cabinet systems without limitations. Ideal for applications up to 4000A.
Basic component requirement to assemble a single floor standing cabinet:
Top and bottom frames four uprights plinth side panels back panel top and bottom plates door

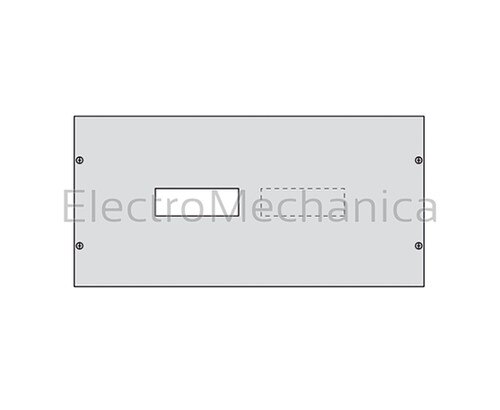

Equipment mounting kits(for Quadro 5 and Quadro+ systems)
Comprises: mounting accessories and front covers for MCBs, MCCBs and ACBs
For 700 mm wide panels - vertical mounting (terminals top and bottom)
| SERIES | Quadro + series |
| INDEX PROTECTION IP | IP55 (with door) |
| DESCRIPTION | Kit for mounting mccbs |
| ORIENTATION | Vertical |
| FOR COMPONENTS | 800/1000A |
| DIMENSIONS (MM) | (H) 600 x (W) 600 |
