TY22C-P11ER-22
22mm RED ILL MET. P/BUTTON 220VAC
R34.90
Supplier: EM
Supplier Code: TY22C-P11ER-22
Pack Size: 1
Panel mount control / Signalling devices

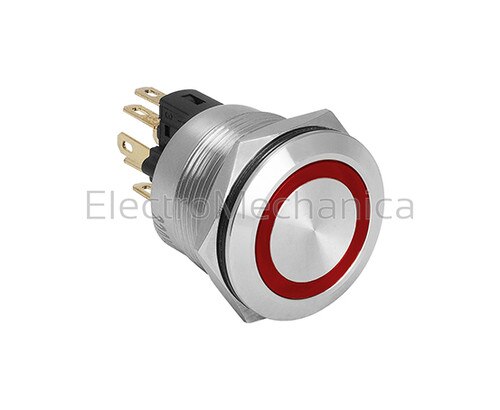

Vandal-proof stainless steel pushbuttons
The GQ22 range of vandal-proof pushbuttons, aesthetically pleasing, mount ⌀ 22 mm illuminated versions feature a LED ring type illumination with clear visibility from a distance.
- Contact rating: Ith 5A - Ui 250V
- Termination: Screw terminals
| COLOUR | Red |
| ACTION | Momentary |
| SUPPLY VOLTAGE | 220 VAC |
| MOUNTING HOLE | ⌀ 22mm |
| DESCRIPTION | Vandal-proof stainless steel illuminated pushbutton |
| LAMP TYPE | LED (ring indication) |
| INDEX PROTECTION IP | IP67 |
| TERMINAL TYPE | Solder terminal |
| BODY MATERIAL | Stainless steel |
| OPERATING TEMPERATURE | -25 ~ +55℃ |
