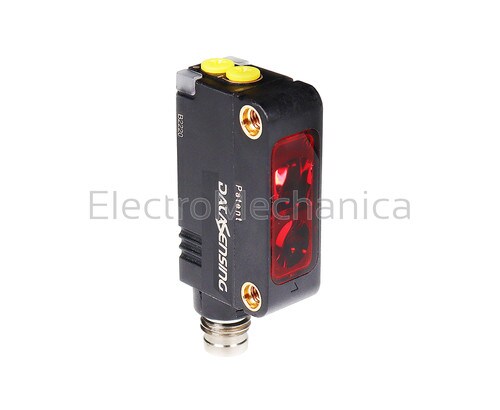

S3N-PR-5-M01-N
PHOTO SEN NPN L/D DIFF M8 B/S
R5,910.00
Supplier: MD Microdetectors
Supplier Code: 95B010762
S3N mini series - Photoelectric cubic sensors
Top performance series in a rugged, miniaturized standard housing. Complete solution for any detection application in any automation industry. Available with Trimmer and Teach-in models.
General features:
- Bright LED (635nm) emission model - for easy alignment
- Impulsive overvoltage protection
- Single, Double trimmer & Push Button models - for easy setup
- Rugged IP67 Plastic Polymer Fibre glass reinforced miniature case
- M3 threaded holes on the front side with metal inserts
- Sensitivity adjustment via 1 or 9 turn trimmer
- Compact dimensions: (H) 31 x (W) 11 x (D) 19 mm
| SERIES | S3N Mini |
| Functional Principle | Backgroung Suppression |
| Output Type | NPN L/D |
| Nominal detection distance | 800mm |
| Optic Position | Radial 90° |
| CONNECTIONS | M8-4 pin |
| SUPPLY VOLTAGE | 24 VDC ± 20% |
| DESCRIPTION | Cubic Photoelectric Sensors |
