PMGB12-5

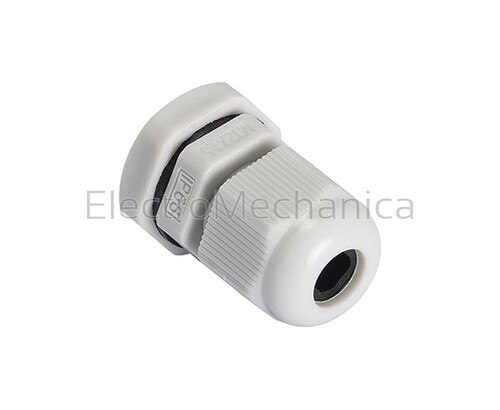

M12 NYLON COMPRESSION GLAND GREY
R2.20
Supplier: EM
Supplier Code: PMGB12-5
Pack Size: 1
M - Metric thread cable glands (supplied with locknut)
- Thread: Metric
- Protection degree: IP68-10
- Material: Body: Nylon PA66 UL approved (Flammability UL94V-2) Seal: EPDM
- Ambient temperature: -40°C...+100°C (instantaneous heat resistance up to 120°C)
| SERIES | PMG series |
| DESCRIPTION | Metric compression gland |
| AG (MM) | M12 |
| THREAD LENGTH (MM) | 8.5 mm |
| COMPRESS AREA (MM) | 3 - 5.5 |
| COLOUR | Light grey |
