FN893E

Quadro+ floor standing distribution board system

Quadro + enclosure systems are supplied in a flat-pack format for ease of transportation and on-site assembly. Cabinets can be joined horizontally to form complete multi-cabinet systems without limitations. Ideal for applications up to 4000A.

Basic component requirement to assemble a single floor standing cabinet:

Top and bottom frames four uprights plinth side panels back panel top and bottom plates door

Features:

• All accessories are designed for adapting enclosures to accommodate a range of components
• Perforations in profiles, brackets, rails are in steps 25 mm apart and accommodate cage nuts M6 (UC990)

Component:

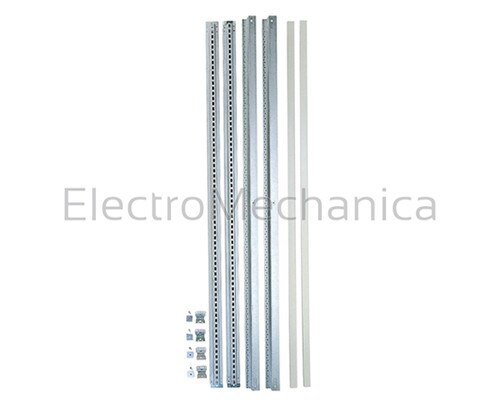

Functional uprights (partial height) to accept mounting kits for circuit breakers / requires 4 x perforated crossbars + front cover fixing profile
