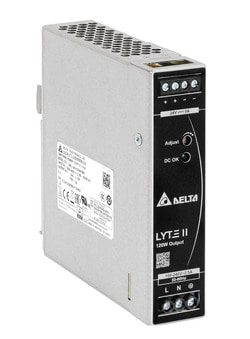

Delta's newest LYTE II series of DIN Rail Power Supply is up to 30% slimmer compared to its LYTE I version. It can help to save precious installation space. The series offers choices of 12V, 24V and 48V nominal output voltages in 75W, 120W and 240W. The overcurrent protection is designed to operate in constant current mode, which makes the LYTE II series suitable for inductive and capacitive load applications.
Certifications and approvals include IEC 60950-1, IEC/EN/UL 62368-1, IEC/EN 61010-1 & 61010-2-201, CCC, EAC and RoHS Directive. Electromagnetic radiated and conducted emissions are compliant to heavy industrial EN 61000-6-4 Class B Emission standard and EN 61000-6-2 Immunity standard.
Highlights & Features
- Universal AC inout voltage range
- Built-in constant current circuit for reactive loads
- Operate from -30°C to +70°C with -40°C Cold Start
- Reduced no-load power consumption
- Compliance to SEMI F47 @ 200 VAC
- 30% slimmer compared to its LYTE I version
- Provides - overload, overvoltage and thermal protection
- DIN rail mounting (RoHS compliant)
- Conformal coating on PCBAs to protect againts chemical and pollutants
ElectroMechanica presents an exclusive online special on Delta's LYTE 2 Series Power Supplies. Whether you need one unit or a box quantity, we have tailored discounts to suit your requirements. For a limited time only, you have the opportunity to unlock incredible discounts by using our special promo codes.
See below for our special offers:
| Part Number | Description | Promo Code | Quantity |
|---|---|---|---|
| DRL-24V75W1AZ | LYTE ll POWER SUPPLY 24DCV 75W 1PH | DRL-75W-S | 1 |
| DRL-24V75W1AZ | LYTE ll POWER SUPPLY 24DCV 75W 1PH | DRL-75W-B | 28 (box) |
| DRL-24V120W1EN | LYTE ll POWER SUPPLY 24DCV 120W 1PH | DRL-120W-S | 1 |
| DRL-24V120W1EN | LYTE ll POWER SUPPLY 24DCV 120W 1PH | DRL-120W-B | 17 (box) |
| DRL-24V240W1EN | LYTE ll POWER SUPPLY 24DCV 240W 1PH | DRL-240W-S | 1 |
| DRL-24V240W1EN | LYTE ll POWER SUPPLY 24DCV 240W 1PH | DRL-240W-B | 13 (box) |
The promotional codes provide you with up to 65% discount on single units and an additional 5% discount on box quantities.
*Terms and conditions apply.
Applications
Products
75W - DRL-24V75W1AZ
120W - DRL-24V120W1EN
240W - DRL-24V240W1EN
