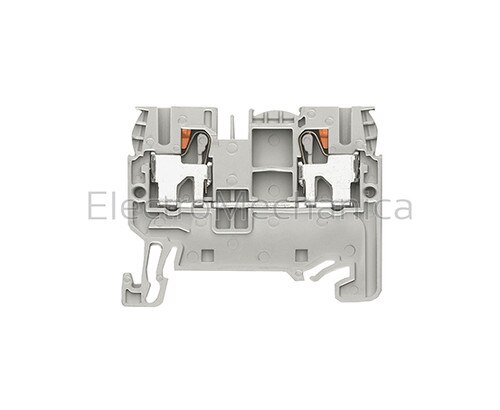

WTP1.5
1.5mm2 RAIL MOUNT TERMINAL
R17.20
Supplier: Wieland
Supplier Code: 56.202.0055.0
Pack Size: 1
WTP series- Terminal blocks with push-in connection technology
General features:
- Flexible system less parts and accessories more functionality
- Compact dimensions - uniform design - universal marking system
- Terminate wires easily, directly and without tools (wires simply push-in to terminals)
- Integrated release lever - no contact with live parts - flat or star screwdriver release button
- Double cross connection row on all terminals for pluggable cross connectors (plug-in bridge bars)
| SERIES | WTP series |
| TYPE | Feed-through terminals with push-in connection |
| DESCRIPTION | Push-in terminal |
| WIRE SIZE (MM²) | 0.14 - 1.5 |
| AMPERAGE (IEC 947-7-1) | 17.5A |
| TERMINAL WIDTH | 3.5 mm |
| MAXIMUM VOLTAGE | 500 V |
| TERMINALS IN | 1 |
| TERMINALS OUT | 1 |
