WAB-060-010-K-P1
STR 10:1 PLANETARY GB 0.2/0.4KW
R11,096.99
Supplier:
Pack Size: 1
Gearboxes for ECMA series servo motors
- Low noise, helical gears allows for smooth and quite gear meshing
- Planetary wheel with needle design increases the contact area to improve the rigidity and output torque
- Synthetic lubricating grease and sealed IP65 design requires no maintenance during the products lifetime
- Gears are carburized and quenched to HRC62 with low carbon steel surface for optimum wear and impact toughness

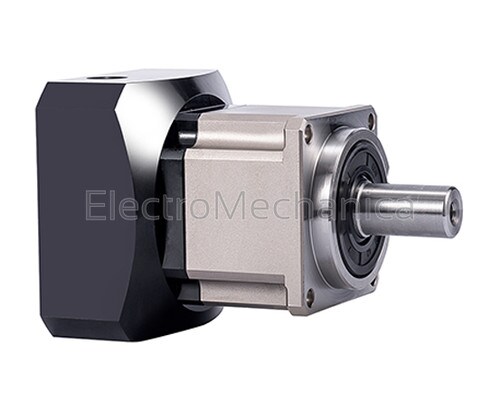

Straight gearboxes (helical gears)
| SERIES | WAB series |
| GEAR ANGLE | Straight - helical gear |
| ECMA MOTOR | 200 - 400 W |
| RATIO | 10:1 |
| RATED TORQUE | 40 |
| BACKLASH ARCMIN | ≤ 3 |
| DIMENSIONS (MM) | PCD 70 / FLANGE 60 x 60 / SHAFT⌀ 16 |
