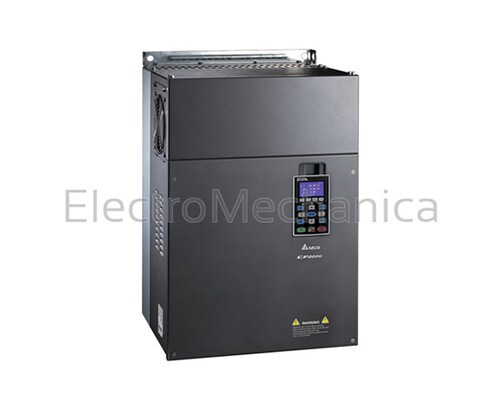

VFD1320CP43B-21

132KW 3PH CP2000 PUMP FAN DRIVE

R131,445.00
Supplier:

CP 2000 series fan and pump purpose drives

CP2000 designed specifically for Pump, Fan and HVAC applications with intelligent PID controller. Sensorless Vector Control, multi-segment V/F control curve and soft start, greatly improve efficiency of the fluctuating torque load and constant output load.

  • Multi-pump control and circulation functions
  • Built-in PLC 10K steps with real-time-clock and calendar
  • Built-in MODBUS and BACnet, expandable with extension cards
  • Enhanced PCB coating ensures reliability in harsh environments
  • Quick setup mode and user defined parameter management, simplify installation
  • Skip frequency function (avoids motor vibration at specific frequency bandwidths)
SERIES CP2000
MOTOR RATING132.0kW
VOLTAGE 380 - 460 VAC
PHASE Three phase
DESCRIPTIONThree phase AC motor drive
FRAME SIZE E2
DIMENSIONS (MM)(H)715 x (W)370 x (D)300
