UC207

Quadro+ floor standing distribution board system

Quadro + enclosure systems are supplied in a flat-pack format for ease of transportation and on-site assembly. Cabinets can be joined horizontally to form complete multi-cabinet systems without limitations. Ideal for applications up to 4000A.

Basic component requirement to assemble a single floor standing cabinet:

Top and bottom frames four uprights plinth side panels back panel top and bottom plates door

Equipment mounting kits(for Quadro 5 and Quadro+ systems)

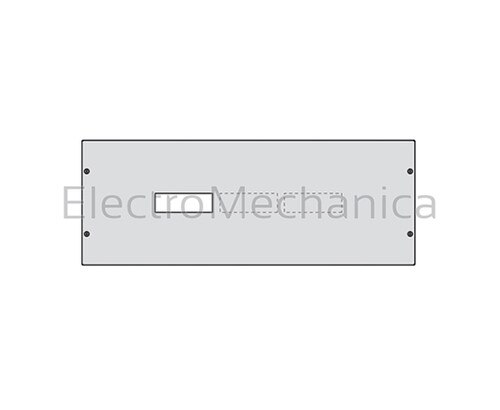

Comprises: mounting accessories and front covers for MCBs, MCCBs and ACBs

For 900 mm wide panels - Vertical mounting (terminals top and bottom)
