TOP1050

4P BUSBAR SUPP KIT 1-3 x 10mm BAR

R894.05
Supplier:
Pack Size: 1

(*) Minimum Quantity: 1

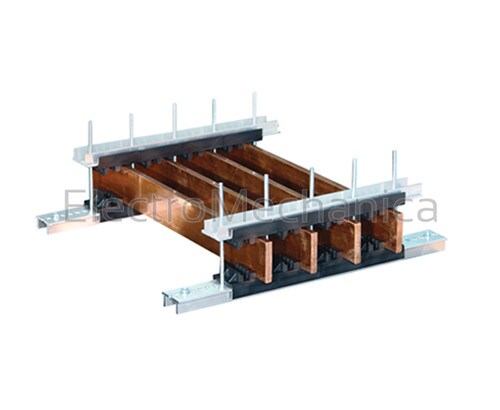

TOP series - Universal busbar support

General features:

  • Adjustable distance between phases
  • For bars 30-120 mm wide / 5 or 10 mm thick
  • Quick and simplified universal fitting - cost effective
  • Non-magnetic aluminium alloy profile (EN AW-6060) prepunched (12.5 mm pitch)
  • Type tested according to IEC 60439-1 certification: ACAE LOVAG (65 / 75 / 100kA eff 1 second)
SERIESTOP series
DESCRIPTIONUniversal busbar support kit
NUMBER OF POLES3 phase + Neutral (four pole system kit)
FOR BUSBAR THICKNESS10 mm
NUMBER OF BARS1 - 3
CONFORMITY OF STANDARDSIEC 60439-1
SUPPLIED WITHInsulated supports (8) and all screws, nuts, washers
