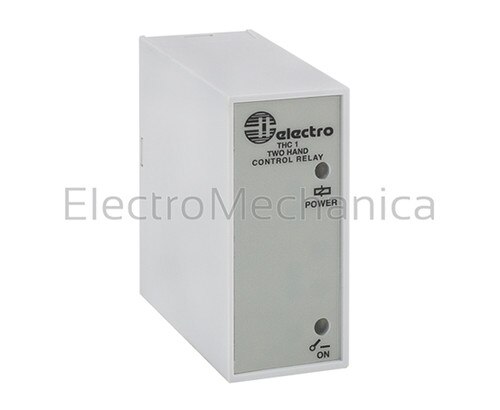

THC1230A

TWO HAND OPERATION MODULE 230VAC

R840.05
Supplier:
Pack Size: 1

(*) Minimum Quantity: 1

Back

Two hand control (safety control)

The Electro 11 pin plug-in range of control and timing devices are to be installed into a standard 11 pin base making installation easy and convenient.

The unit is designed for machines where the operator has to push two buttons to activate the machine itself (two hand control). A latch facility is incorporated to use with a foot switch.

Features:

  • Output 10A SPDT
  • Latch input for foot control
  • Power supply ON and Relay ON LEDs
  • Fixed time to activate both hand control
  • Two normal open inputs for two hand control
DESCRIPTIONTwo hand controller
CONTACT10A SPDT
RATED VOLTAGE250V
MECHANICAL LIFE10x106 cycles
PROTECTION INDEX IPIP 20
OPERATING TEMPERATURE-10 to + 50°C
STORAGE TEMPERATURE-50 to + 85°C
DIMENSIONS (MM)(H) 92 x (W) 36 x (D) 64
