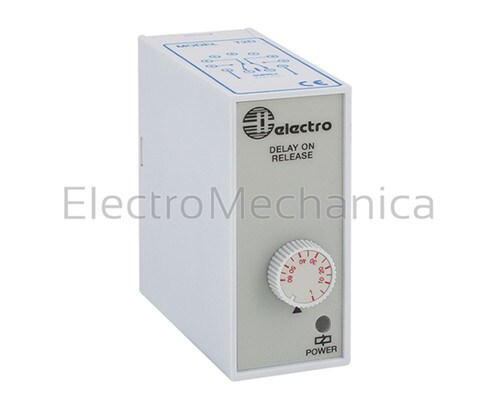

T3M110A

Multi-function (4 x functions) multi-range (4 x time ranges)

The Electro 11 pin plug-in range of control and timing devices are to be installed into a standard 11 pin base making installation easy and convenient.

Microprocessor based multi-function timer with four selectable modes of operation and time range from 0.3 sec - 60 hrs. Extensive applications due to combinations of functions and time ranges. Due to the advanced design of the unit a high accuracy can be achieved. All commonly used functions are incorporated in the unit. Any adjustment on the front potentiometer after the supply is applied is not acknowledged. This prevents unwanted changes of the time range. The instantaneous contact in the unit can be used in a hold-incircuitor where an out put is needed immediately when the supply is applied. For a unit without an instantaneous contact the T2M can be used.

Features:

• Delay output 10A SPDT
• Repeatable deviation:<0.2%
• Microprocessor based design
• Time range 0.3second - 60hours
• Instantaneous output 10 A SPDT
• Potentiometer adjustable time setting
• Powersupply ON and Relay ON LEDs
• Rear DIP switch selection of 4 functions
• Rear DIP switch selection of 8 timer ranges
