RFE453200

ELECTRONIC OVERLOAD 6.4-32A

R1,840.91
Supplier:
Pack Size: 1

(*) Minimum Quantity: 1

Back

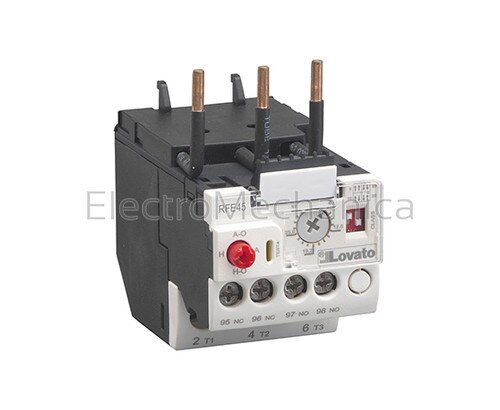

RFE series - Electronic overload relays (self powered by main circuit)

RFE series electronic overload relays for currents from 0.4 to 110A. They have a high trip accuracy, a very low heat dissipation and do not need any auxiliary supply.

  • Reset can be selected in automatic or manual mode
  • Each single relay covers a wide current range
  • Maximum rated current: 32A for RFE45, 110A for RFE110
  • Four trip classes can be selected using dedicated dip-switches: 5, 10, 20, 30
  • RFE45 can be installed directly on contactors BF09...38 or on an independent support for mounting on DIN rail
  • RFE110 is supplied with the support for independent mounting on DIN rail as standard
SERIESRFE
MOTOR RATING AC3 400V3 - 15 kW
ADJUSTMENT RANGE6.4 - 32A
DESCRIPTIONElectronic overload relay (self powered by main circuit)
RESETSelectable manual reset
FOR CONTACTORBF09 - 38
