QXR/C0-1A
PHOTO SW THRU BM PNP/NPN/NC 8M
R3,310.00
Supplier: MD Microdetectors
Supplier Code: QXR/C0-1A
Pack Size: 1

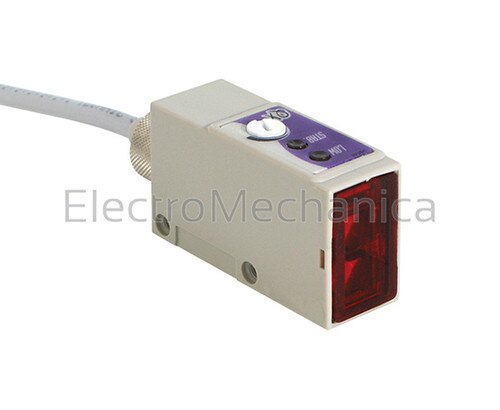

QX series (rectangular) photoelectric sensor
Key features:
- Precision beam
- Axial and right angle optics
- NPN-PNP selectable output
- High output current (>300 mA)
- Fast response time (0,75-0,5 ms)
- 2 LEDs (threshold and signal margin)
- Through beam (receiver) requires a transmitter and receiver
- Visible red light in retro-reflective, polarized and through-beam models
| SERIES | QX series |
| DESCRIPTION | Cubic miniaturized photoelectric sensor |
| SUPPLY PROTECTION | Polarity reversal, impulse overvoltage, short circuit |
| INDEX PROTECTION IP | IP67 |
| LED INDICATION | Yellow (output status) / green (supply present) |
| HOUSING MATERIAL | ABS (glass fiber reinforced) |
| SENSITIVITY | Adjustable |
| SUPPLY VOLTAGE | 10 - 30 VDC |
| DIFFUSED | No |
| RETRO-REFLECTIVE | No |
| POLARISED RETRO | No |
| THROUGH-BEAM | Yes |
| SENSING DISTANCE (MM) | 8 meter |
| PNP | Yes |
| NPN | Yes |
| NO | No |
| NC | Yes |
| CONNECTOR | Cable |
