QMRN/0P-0F
PHOTO SEN 10-30VDC RETRO NO/NC 5M
R1,970.00
Supplier: MD Microdetectors
Supplier Code: QMRN/0P-0F
Pack Size: 1

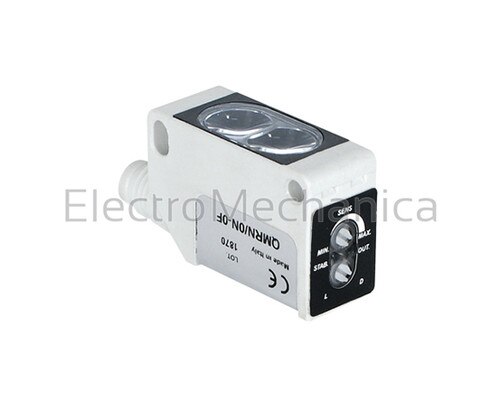

QM series cubic sensor
Key features:
- Selectable LO/DO output state
- Complete protection against electrical damages
- Retro-reflective (polarised) used together with a reflector
- Available with cable and M8 plug exit or with M8-M12 pig-tail
- Completely filled with resin (except background suppression models)
- 2 kHz switching frequency, background suppression with mechanical adjustment
- Cubic miniaturized photoelectric high-performance sensors with long sensing distance
| SERIES | QM series |
| DESCRIPTION | Cubic miniaturized photoelectric sensor |
| SUPPLY PROTECTION | Polarity reversal, impulse overvoltage, short circuit |
| INDEX PROTECTION IP | IP67 |
| LED INDICATION | Yellow (output status) / green (supply present) |
| HOUSING MATERIAL | PA66 |
| SENSITIVITY | Adjustable |
| SUPPLY VOLTAGE | 10 - 30 VDC |
| DIFFUSED | No |
| RETRO-REFLECTIVE | No |
| POLARISED RETRO | Yes |
| THROUGH-BEAM | No |
| SENSING DISTANCE (MM) | 5 meter |
| PNP | Yes |
| NPN | No |
| NO | Yes |
| NC | Yes |
| CONNECTOR | M8 plug (4 pin) |
| DIMENSONS (MM) | (H)12.8 x (W)21 x (D)31.2 |
