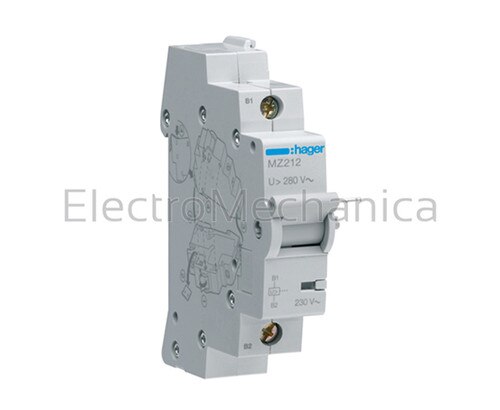

MZ212
OVERVOLTAGE RELEASE 230VAC MCBs
R845.00
Supplier: Hager
Supplier Code: MZ212
Pack Size: 1
Auxiliaries and tripping devices for MCBs and RCDs
All auxiliaries are common to both single and multi-pole circuit breakers as well as RCCBs and RCBOs. Auxiliaries are fitted to the left side of the device.
Features:
- Field fittable accessories for MCB's: NF, HMC, NGN, NDN, HMD, HLF, NRN:
- Auxiliary contacts
- Alarm contacts
- Shunt trip device
- Undervoltage release
| DESCRIPTION | Over voltage release |
| APPLICATION | Trips the protection device in case of overvoltage |
| WIDTH IN 17.5MM | 1 |
| OPERATING TEMPERATURE | -25 to 60 °C |
| STORAGE TEMPERATURE | -40 to 80 °C |
| RATED OPERATIONAL VOLTAGE | 230 V |
| FREQUENCY | 50-60Hz |
| CONNECTION CROSS-SECTION RIGID CABLE | 10 mm² |
| CONNECTION CROSS-SECTION FLEXIBLE CABLE | 6 mm² |
