LS-147

NYLON FLOAT SW HINGED MNT M16

R363.63
Supplier:
Pack Size: 1

Float/flow switches (reed type)

When the magnetic field (caused by an internal permanent magnet) is moved into the proximity of the sealed reed switch inside the stationary stem, the reed switch contacts close the electrical circuit. When the magnet is moved away from the reed switch the circuit is opened. The float switches are extremely compact, simple and easy to install and not effected by electrical interference and withstand chemicals.

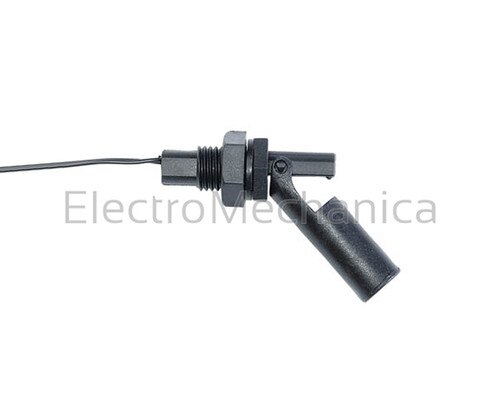

DESCRIPTIONHinged type horizontal mount float switch
MATERIAL Nylon
INTERNAL/EXTERNALInternal
MOUNTINGSide mount
THREAD SIZE (MM)M16
PRESURE WITHSTAND8 BAR
ELECTRICAL CONNECTION300 mm cable
SWITCH CURRENT70 VA
SWITCH VOLTAGE 250 VAC / 200 VDC
SWITCH CONTACTN.O. (reversible by reversing float)
ACCURACY± 2 mm in water
OPERATING TEMPERATURE -10°C - +75°C
FLOAT SIZE(L) 47 mm () 17 mm
APPLICATION Can be used for high or low level sensing (by turning float direction up or down)
