LNE-36V185WDCA

LED DRIVER DIMMABLE 36VDC 5.2A 185W

R1,205.86
Supplier: Delta
Pack Size: 1
Stock Availability: Login to check stock

Industrial LED drivers

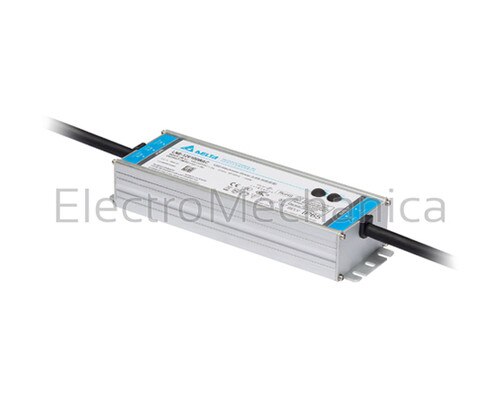

Delta LNE series LED drivers features full corrosion resistance aluminium housing designed and rigorously tested to operate in various indoor and outdoor LED lighting conditions. High surge immunity and IP protection make the LNE series essential for energy efficient LED lighting power solution.

Features:

  • Dimmable LED drivers (IP67)
  • Universal AC input voltage
  • High efficiency > 93.0%
  • Full corrosion resistant aluminium housing
  • IP65/67 protection for most outdoor applications
  • Operating temperature: -40°C to +70C
  • Common mode 6kV and differential mode 4kV surge immunity
  • Conforms fully to all major international safety standards
  • 3-in-1 dimming function adjusted by resistance or 1 - 10 VDC or 10V PWM signal
  • Built-in Active PFC and conforms to harmonic current IEC/EN 61000-3-2, Class C
  • Over voltage / current / temperature / short circuit protection (auto-recovery when fault is removed)
SERIES LNE
DESCRIPTIONDimmable industrial LED driver
INPUT VOLTAGE 90 - 264 VAC
OUTPUT VOLTAGE36 VDC
OUTPUT CURRENT5.2A
OUTPUT POWER185W
EFFICIENCY AT 100%0.935
OPERATING TEMPERATURE-40 to 0+70 °C
IEC/EN61000-3-2, Class 2
PROTECTION INDEX IPIP65
DIMENSIONS (MM)(H) 68 x (W) 220 x (D) 38.8
