F30024AD
FLIP-FLOP RELAY 230VAC 24VACDC
R1,010.00
Supplier: Electrodev
Supplier Code: F30 024VAC-DC
Pack Size: 1

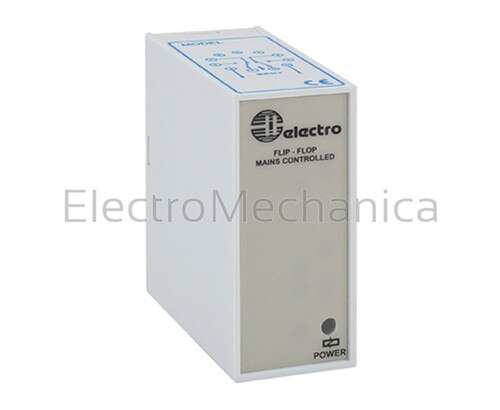

Flip Flop Relay
The Electro 11 pin plug-in range of control and timing devices are to be installed into a standard 11 pin base making installation easy and convenient.
Flip - flop relays to control many applications such as spreading work load and controlling conveyor direction. Main controlled flip - flop with memory has to be energized for at least 30 seconds before the supply is removed. A delay of at least 10 seconds has to be complied to ensure proper functioning.
Features
- Output 10A SPDT
- Power supply ON LED
- Pulse controlled flip - flop with memory
| DESCRIPTION | Pulsed controlled with memory or mains controlled |
| CONTACT | 8A SPDT |
| RATED VOLTAGE | 250V |
| MECHANICAL LIFE | 10x106 cycles |
| PROTECTION INDEX IP | IP 20 |
| OPERATING TEMPERATURE | -10 to + 50°C |
| STORAGE TEMPERATURE | -50 to + 85°C |
| DIMENSIONS (MM) | (H) 92 x (W) 36 x (D) 64 |
