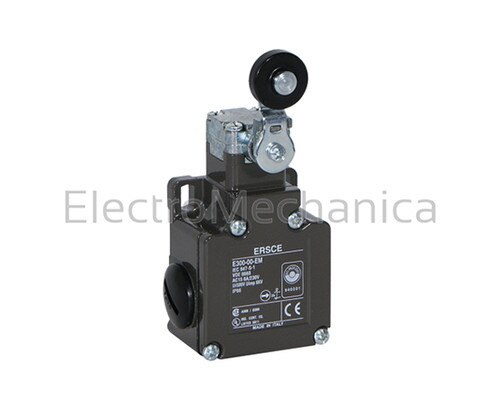

E10100IMRA
LIMIT SW 10A ROTARY ROLLER LEVER
R880.00
Supplier: Ersce
Supplier Code: E10000IMRA 00
Pack Size: 1
E100 series industrial limit switches
E series industrial limit switches are suitable for most environmental conditions due to their solid construction, IP66 certification and proven reliability over decades of fieldwork.
General features:
- Rated thermal current (Ithe IEC947-5-1): 10A
- Conformity to IEC/EN 60947-5-1, VDE 0660-200, EN 50047, UNI EN 1088, EN ISO 12100-1, IEC529
| SERIES | E100 series |
| DESCRIPTION | Limit switch |
| ACTUATOR TYPE | Offset rotary (metal) roller arm lever |
| CONTACT CONFIGURATION | 1NO+1NC |
| INDEX PROTECTION IP | IP66 |
| HOUSING MATERIAL | Diecast metal body |
| CABLE ENTRY | 1 x bottom entry (Pg 13.5) |
| FIXING HOLE DISTANCE | 20/22 mm |
| DIMENSIONS (MM) | (H) 77.5 x (W) 30.5 x (D) 33 mm |
