DUR230A
UNEQUAL REPEATING TIMER 230VAC
R1,047.67
Supplier: Electrodev
Pack Size: 1

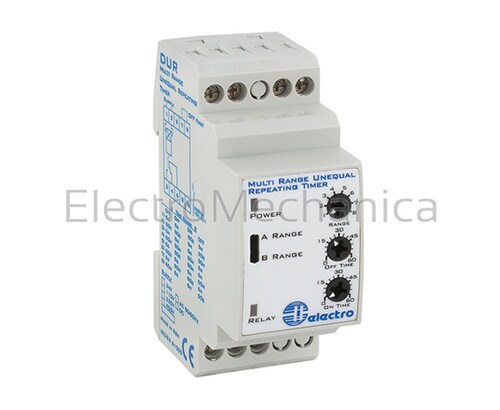

Unequal Repeating Timer - DUR
The Electro D range of control and timing devices are compact modular units for easy introduction into standard panels and/or distribution boards. They mount directly onto DIN rail and align with standard miniature circuit breakers (MCB's).
Multi range timer designed with the latest technology that covers most combinations of ON and OFF time ranges. DIN rail mountable for front and back panel positioning. Any change made to time range by means of front mounted dials will result in a reset of the unit.
Features:
- Microprocessor controlled
- 16 Front face adjustable time range
- Front face adjustable time settings
- Modular 35.5mm DIN rail mountable
- 0.3 - 60 hrs Adjustable ON / OFF time ranges
- 10A SPDT output relay
- LED indication for relay and power supply ON
| DESCRIPTION | Unequal repeating electronic timer |
| TIME RANGE A (ON-OFF) | 6sec - 6sec, 60sec - 60sec, 6min - 6min, 60min - 60min, 6sec - 60sec, 60sec - 6sec, 6sec - 60min, 60min - 6sec |
| TIME RANGE B (ON-OFF) | 60sec - 6min, 6min - 60sec, 6min - 60min, 60min - 6min, 60min - 6hours, 6hours - 60min, 60sec - 6hours, 6hours - 60sec |
| CONTACT | 10A |
| RATED VOLTAGE | 250V |
| MECHANICAL LIFE | 10x106 cycles |
| PROTECTION INDEX IP | IP 20 |
| OPERATING TEMPERATURE | -10 to + 50°C |
| STORAGE TEMPERATURE | -50 to + 85°C |
| DIMENSIONS (MM) | (H) 92 x (W) 36 x (D) 64 |
