DPF1110A
PH FAILURE AND REVERSALREL 110VAC
R828.00
Supplier: Electrodev
Supplier Code: DPF1 110VAC
Pack Size: 1

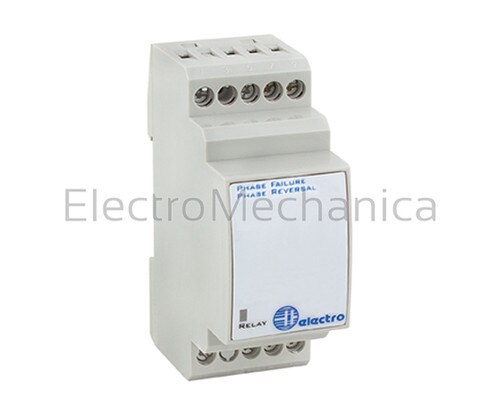

Phase Failure / Reversal Monitor
The Electro D range of control and timing devices are compact modular units for easy introduction into standard panels and/or distribution boards. They mount directly onto DIN rail and align with standard miniature circuit breakers (MCB's).
Phase Failure / Reversal Monitor for monitoring three phase supply voltage. The unit is ideal for protection against phase reversal, phase loss and phase imbalance.
Features:
- Monitors own supply
- 10A SPDT output relay
- LED indication for relay ON
- Modular 35.5mm DIN rail mountable
- High resolution analogue microprocessor
- Detects phase reversal, loss and imbalance
| DESCRIPTION | Failure/reversal relay |
| CONTACT | 10A SPDT |
| INPUT | Pin 1, 5 & 9, L1, L2 & L3 |
| RANGE | 8% NPS voltage |
| RATED CURRENT | 10A |
| RATED VOLTAGE | 250V |
| MECHANICAL LIFE | 10x106 cycles |
| PROTECTION INDEX IP | IP 20 |
| OPERATING TEMPERATURE | -10 to + 50°C |
| STORAGE TEMPERATURE | -50 to + 85°C |
| DIMENSIONS (MM) | (H) 92 x (W) 36 x (D) 64 |
