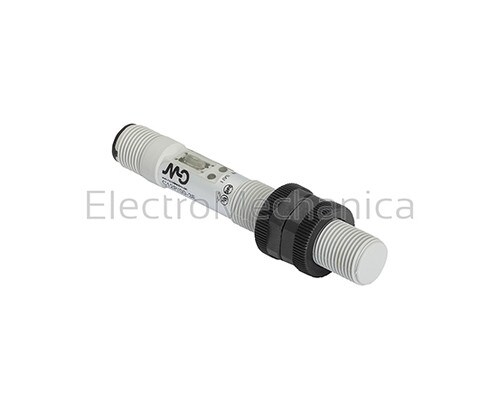

C18P/C0-2A
M18 3-12mm 20-250VAC NC CAP PROXI
R2,025.72
Supplier:
Pack Size: 1
Capacitive proximity sensors
Capacitive proximity sensors are used to sense any material, solid or liquid (water, wood, metals, granules, powders, etc...) even through plastic or glass walls. They feature extremely high electromagnetic compatibility (EMC), with high shock/vibration resistance and minimal sensitivity to dust and moisture, ensuring reliable object detection in harsh industrial environments.
Key features:
- Detects powders, granulates, liquids and solids
- Sensitivity adjustment
- Short circuit and polarity reversal protection
- Protection degree: IP67/68/69K
- Ambient limits: -20 ... +85°C
- LED indication: Incorporated
- Housing material: Thermoplastic polyester
C18 series M18 Capacitive proximity switches
- Adjustable sensitivity via potentiometer
- Standard output: NO and NC
| SERIES | C18P series |
| DESCRIPTION | M18 capacitive proximity switches |
| SUPPLY PROTECTION | Short circuit and polarity reversal protection |
| INDEX PROTECTION IP | IP67 / 68 / 69K |
| LED INDICATION | Incorporated |
| HOUSING MATERIAL | Thermoplastic polyester |
| SUPPLY VOLTAGE | 20 - 250 VAC |
| FLUSH | No |
| NON-FLUSH | Yes |
| SENSING DISTANCE | 3...12 mm |
| SCR | Yes |
| NO | No |
| NC | Yes |
| CONNECTOR | Cable |
